Description

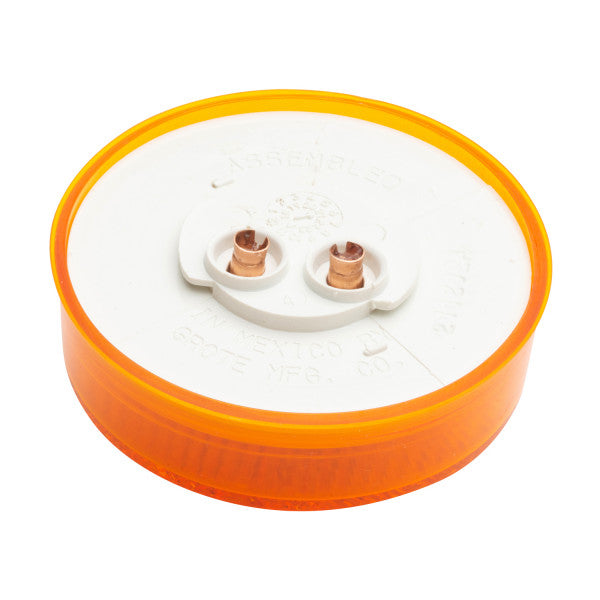

Grote Hi Count 13-Diode LED Round Clearance Marker Light (Reflective Lens, Amber)
Part Number: LTG G1003
Grote's Hi Count® 2 1/2" LED Clearance Marker Lights are designed to fit most popular mounts and are twist-on mounted for easy installation.
- Hermetic lens-to-housing seal
- Twist-on mounting for easy installation
- Fits all popular mountings and grommets
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
Technical Specifications
- Color: Amber/Yellow
- Mounting Type: Grommet, Bracket
- Connection Type: PL-10
- Lens Color: Amber with built-in reflector
- Shape: Round
- Amperage: .04A
- Size: 2½"
- Functions: P2, A
- Regulations: FMVSS 108
- VMRS: 034-004-253
- Material: Polycarbonate Housing, Polycarbonate Lens
- Product Type: Clearance Marker
- Diameter: 2.5"
- Housing Color: White
Grommets:
     91400 91410 92070 91890 91880 |
Brackets:
    43690 49140 42180 93750 |
     43522 43512 43163 43162 43160 |
Pigtails:
    66851 66850 67001 67050 |
   66800 66840 66801 |
TECHNICAL SHEET
VIEW IN CATALOG
Interchanges:
Automann: 571.LD11A7, 571LD11A7
Maxxima: M11256Y
Optronics: MCL59AB
Peterson: M173A
Trucklite: 1052A
