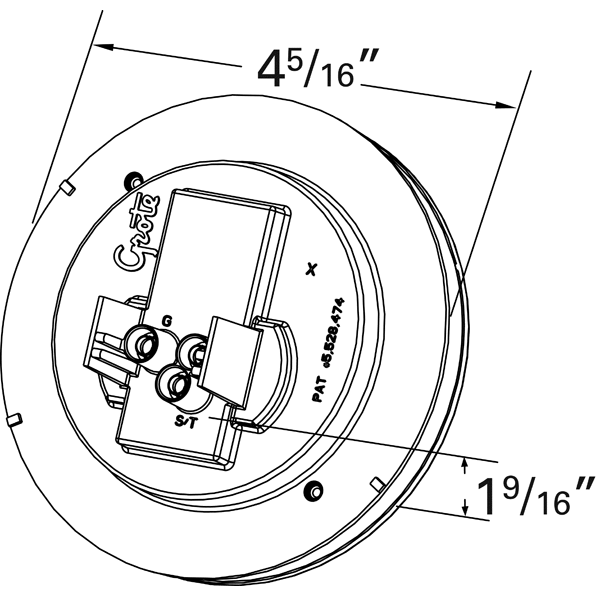

LTG 54342 Grote Select LED Stop Tail Turn Light (4" Round, 3 Female Pin)

Grote Select LED Stop Tail Turn Light (4" Round, Female Pin)

Part Number: LTG 54342

Our Grote-Select 4-inch LED stop tail turn lights have a faster light-on response time than similar incandescent bulbs, which means a greater stopping alert distance. This helps prevent accidents and improve the visibility of your vehicles on the road. These lights use existing pigtails and wiring, so you can retrofit your vehicles without costly wiring upgrades. They also help prevent theft by mimicking the look of incandescent lighting, all while still using more effective and efficient LED technology to improve the life and decrease the current draw from the lights. Moisture intrusion is prevented with a hermetic lens-to-housing seal, helping to increase the life of the light even more.

• With a wider range of voltage, lights can be used virtually anywhere
• Uses existing pigtails and wiring for cost-effective retrofit
• Fits all Grote bracket, grommet, & flange mounting options
• Hermetic lens-to-housing seal prevents moisture intrusion
• Resembles incandescent lights to alleviate theft concerns
• Faster light-on response time provides greater stopping alert distance than incandescent lamps
• Longer life and less current draw than standard incandescent lamps leaves more voltage available to other vehicle systems

Technical Specifications

• Material: Acrylic Lens, ABS Housing
• Color: Red
• Lens Color: Red
• Housing Color: White
• Voltage: 12V
• Amperage: .03A-.24A
• Mounting Type: Grommet
• Connection Type: Female Pin
• Size: 4"
• Regulations: FMVSS 108
• Functions: P2, S, T, I
• VMRS: 034-002-059
• Diameter: 4"
• Product Type: Stop Tail Turn
• Shape: Round

Brackets:

92510              92511              92512              93190              93683              51090

43655              43732              43572              43253              93553              93552

Grommets:

91740              91950

Pigtails:

66812              66843              66844              66825              67000              67090

TECHNICAL SHEET
VIEW IN CATALOG

Interchanges:

Automann: 571.LD40R1, 571LD40R1, 571.LD40R10, 571LD40R10, 571.LD40R10-1, 571LD40R101, 571.LD40A7, 571LD40A7
Maxxima: M42346R
Optronics: STL13RB, STL0003RB, STL43RB
Paccar: P54-6130, P546130
Peterson: M417R-3, M417R3, 826R, 826R9
Trucklite: 44356R, 4058-3, 40583
United Pacific: 36459
