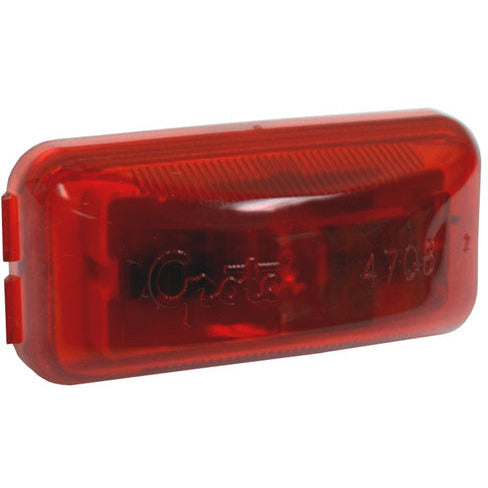

LTG 47082 Grote SuperNova LED Rectangle Clearance Marker Light (3", Red)

Grote SuperNova LED Rectangle Clearance Marker Light (3", Red)

Part Number: LTG 47082

Grote's 3" SuperNova LED Clearance Marker Lights have tin-plated, solid brass terminals to resist corrosion and eliminate failure-causing leak paths.

• Encapsulant potting for total circuit board protection
• Tin-plated, solid brass terminals are sealed to housing to resist corrosion and eliminate failure-causing leak paths
• Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
• Hermetic lens-to-housing seal

Technical Specifications

• Material: Polycarbonate Housing, Polycarbonate Lens
• Color: Red
• Lens Color: Red
• Housing Color: White
• Amperage: .06A
• Mounting Type: Grommet, Bracket
• Connection Type: PL-10

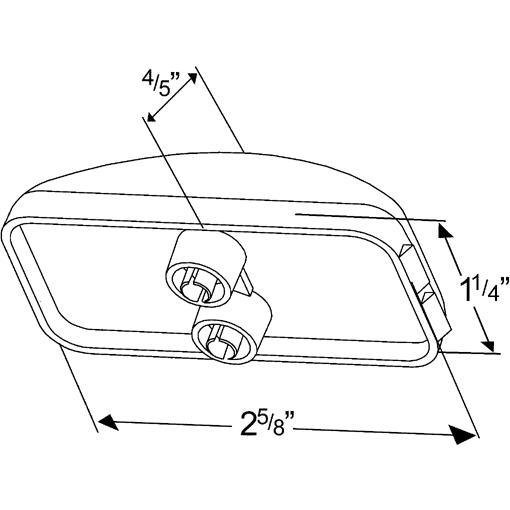

• Size: 3"
• Regulations: FMVSS 108
• Functions: P2
• VMRS: 034-004-253
• Product Type: Clearance Marker
• Shape: Rectangular

Grommet:

91380

Brackets:

43370              43970              43980



Pigtails:

66851              66850              67001              66800              66801              66840              67050

VIEW IN CATALOG







Interchanges:

Automann: 571.LD15R3, 571LD15R3
Optronics: AL91RBP
Peterson: 203R
Trucklie: 1560
